NDT3055L MOSFET SOT-223 N-CH LOGIC

Product Categories
Shenzhen Jinsheng Weiye Electronics Co., Ltd
Contact Now

NDT3055L MOSFET SOT-223 N-CH LOGIC

  • 1
  • 2

Brand Name : onsemi

Model Number : NDT3055L

Certification : ROHS

Place of Origin : Call

MOQ : Contact us !

Price : Contact us !

Payment Terms : Paypal, Western Union, TT

Supply Ability : 50000 Pieces per Day

Delivery Time : Send email to learn lead time

Packaging Details : Standard package

Product Name : NDT3055L

Condition : Original 100%

Installation methodpe : Surface sticker

Package : SOT-223

Voltage - Supply : MOSFET

Max. Reverse Current : SOT-223 N-CH LOGIC

Application : Accuracy Digital Temp Sensor

Contact Now


NDT3055L MOSFET SOT-223 N-CH LOGICNDT3055L Datasheet

Specifications

Attribute Attribute Value
Manufacturer onsemi
Product Category FETs - Single
Series -
Packaging Alternate Packaging
Part-Aliases NDT3055_NL
Unit-Weight 0.006632 oz
Mounting-Style SMD/SMT
Package-Case TO-261-4, TO-261AA
Technology Si
Operating-Temperature -65°C ~ 150°C (TJ)
Mounting-Type Surface Mount
Number-of-Channels 1 Channel
Supplier-Device-Package SOT-223-4
Configuration Single
FET-Type MOSFET N-Channel, Metal Oxide
Power-Max 1.1W
Transistor-Type 1 N-Channel
VDSS – Drain-Source Voltage 60V
Input Capacitance 250pF @ 30V
FET-Feature Standard
Current-Continuous-Drain-Id-25°C 4A (Ta)
Rds-On-Max-Id-Vgs 100 mOhm @ 4A, 10V
Vgs-th-Max-Id 4V @ 250μA
Gate-Charge-Qg-Vgs 15nC @ 10V
Pd-Power-Dissipation 3 W
Maximum Operating Temperature + 150 C
Operating temperature range - 65 C
Fall-Time 30 ns
Rise-Time 18 ns
Vgs-Gate-Source-Voltage 20 V
ID (drain current) 4 A
Vds-Drain-Source-Breakdown-Voltage 60 V
Rds-On-Drain-Source-Resistance 100 mOhms
Transistor-Polarity N-Channel
Typical-Turn-Off-Delay-Time 37 ns
Turn-On Delay Time 10 ns
Transconductance 6 S
Channel-Mode Enhancement

Who we are?

is a professional electronic marketing corporation entirely engaged in the fields of semi-conductors and electronic components sale and service for clients over 10 years, specialize in selling the new and unused, original factory sealed packing electronic components. specialize in IC,diode,transistor,IGBT,DC-DC converter.....***has set up our own sales service conception and has already established strong partnerships with many famous manufacturers and we have more than 5,000,000 kinds of electronic components for your choices, always at your services !

FAQ
Q: Are you trading company or manufacturer?
A: We are original manufacturer OF Integrated Circuit Chip . We can do OEM/ODM business.
Q: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20 days.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q: How to buy your products?
A: You can buy the products from our company directly.Normally the procedure is sign the contract, payment by T/T,Contact the shipping company to delivery the goods to your country.
Q: What is the warranty ?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
6-TSSOP,


Quality NDT3055L MOSFET SOT-223 N-CH LOGIC for sale

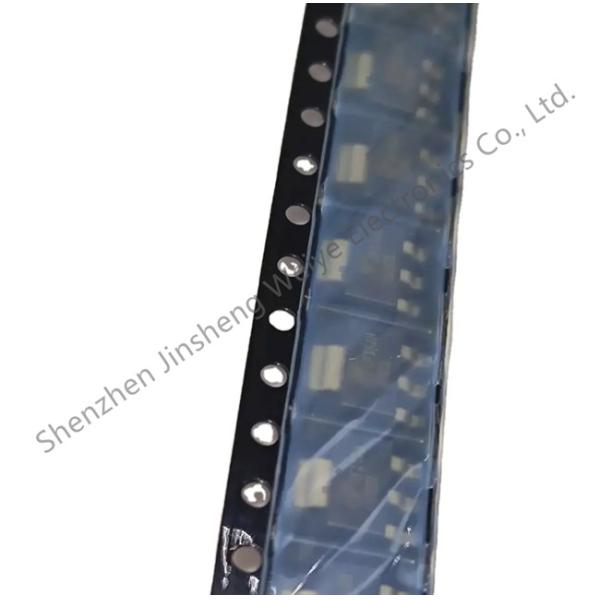

NDT3055L MOSFET SOT-223 N-CH LOGIC Images
