MC33972ATEWR2 Interface - Specialized MULT SW DET SUP-WKUP

Name: MC33972ATEWR2 Interface Specialized MULT SW DET SUPWKUP
Brand: Freescale / NXP
Price: 1 USD

Brand Name : Freescale / NXP

Model Number : MC33972ATEWR2

Certification : ROHS

Place of Origin : Call

MOQ : Contact us !

Price : Contact us !

Payment Terms : Paypal, Western Union, TT

Supply Ability : 50000 Pieces per Day

Delivery Time : Send email to learn lead time

Packaging Details : Standard package

Product Name : MC33972ATEWR2

Condition : Original 100%

Installation methodpe : SPI Serial Surface Mount MC33972 32-SOIC Switch Detection Interface 3.1 V ~ 5.25 V

Package : 32-BSSOP Exposed Pad

Voltage - Supply : International standard

Max. Reverse Current : International standard

Application : Specialized Interfaces

Contact Now

MC33972ATEWR2 Datasheet

Product Details

Multiple Switch Detection Interface with Suppressed Wake-up

The 33972 Multiple Switch Detection Interface with suppressed wake-up is designed to detect the closing and opening of up to 22 switch contacts. The switch status, either open or closed, is transferred to the microprocessor unit (MCU) through a serial peripheral interface (SPI). The device also features a 22-to-1 analog multiplexer for reading inputs as analog. The analog input signal is buffered and provided on the AMUX output pin for the MCU to read.

Features

• Designed to operate 5.5 V ≤ VPWR ≤ 26 V
• Switch input voltage range -14 V to VPWR, 40 V Max
• Interfaces directly to MPU using 3.3 V/5.0 V SPI protocol
• Selectable wake-up on change of state
• Selectable wetting current (16 or 2.0 mA)
• 8 programmable inputs (switches to battery or ground)
• 14 switch-to-ground inputs
• Typical standby current - VPWR = 100 μA and VDD = 20 μA
• Active interrupt (INT) on change-of-switch state

Specifications

Attribute	Attribute Value
Manufacturer	Freescale / NXP
Product Category	Specialized Interfaces
Series	MC33972
Product	Switch Detectors
Type	Switch Detection Interface
Packaging	Alternate Packaging
Unit-Weight	0.017990 oz
Package-Case	32-BSSOP Exposed Pad
Operating-Temperature	-
Mounting-Type	Surface Mount
Applications	Switch Monitoring
Interface	SPI Serial
Voltage-Supply	3.1 V ~ 5.25 V
Supplier-Device-Package	32-SOIC
Current-Supply	-
Number-of-Inputs	-
Proximity Sensor	-
LED-Driver-Channels	-
Resolution	-

Descriptions

Switch Monitoring Interface 32-SOIC

Interface - Specialized MULT SW DET SUP-WKUP

Who we are?

is a professional electronic marketing corporation entirely engaged in the fields of semi-conductors and electronic components sale and service for clients over 10 years, specialize in selling the new and unused, original factory sealed packing electronic components. specialize in IC,diode,transistor,IGBT,DC-DC converter.....***has set up our own sales service conception and has already established strong partnerships with many famous manufacturers and we have more than 5,000,000 kinds of electronic components for your choices, always at your services !

FAQ
Q: Are you trading company or manufacturer?
A: We are original manufacturer OF Integrated Circuit Chip . We can do OEM/ODM business.
Q: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20 days.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q: How to buy your products?
A: You can buy the products from our company directly.Normally the procedure is sign the contract, payment by T/T,Contact the shipping company to delivery the goods to your country.

Q: What is the warranty ?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
6-TSSOP,

Quality MC33972ATEWR2 Interface - Specialized MULT SW DET SUP-WKUP for sale

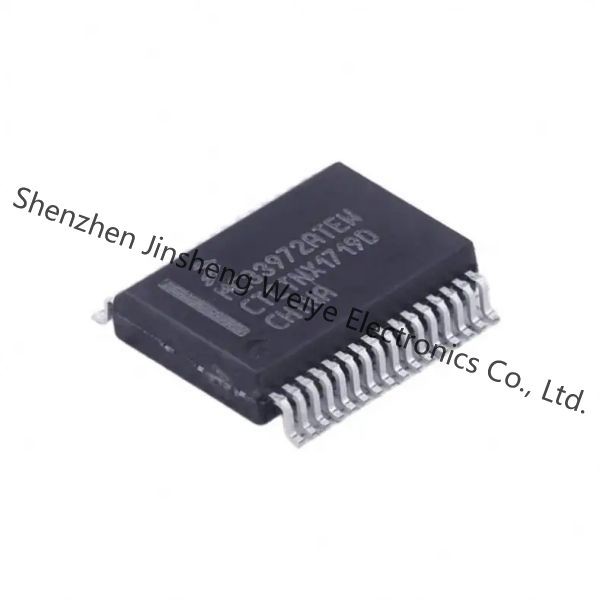

MC33972ATEWR2 Interface - Specialized MULT SW DET SUP-WKUP Images
